XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified

Name: XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
Brand: Zaozhuang NO.1
Price: 25000 USD

China XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified wholesale

Brand Name : Zaozhuang NO.1

Model Number : XK5040

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 25000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Table size : 1700x400mm

X/Y/Z–axis travel : 1000x330x400mm

Spindle Taper : ISO:50/7:24

Spindle speed range (series) : 30-1500/18

Table rotation angle (optional) : ±45°

Main motor power : 7.5kw

T-groove : 3-18-90

Contact Now

XK5040 Fresadora Cnc Vertical Milling Machine Manufacturer CE Certified Low Price

Product Description:

The XK5040 is a high-performance vertical CNC milling machine featuring a sturdy bed structure and precision guideways to ensure machining stability and accuracy. Equipped with a CNC system, it supports three-axis linkage and a wide spindle speed range to meet the needs of processing a variety of materials.

Standard Configuration:

1. Guangtai 130 system

2.Three axis CNC

3.Manual transmission of spindle

4.Electronicoil pump

5.Three-axis hard rail

Optional Configuration:

1. System :GSK,KND

2.Pneumatic broach

3.CNC dividing head

4.Top Tailstock

5.Fully protected sheet metal

Product Specification:

  	 			PARAMETER ITEM
 			UNIT
 			XK5032
 			XK5040

 			Size of worktable
 			mm
 			1500x320
 			1700x400

 			Tabe travel
 			mm
 			900x310x350
 			880x300x365

 			T-groove
 			mm
 			3-14-70
 			3-18-90

 			Spindle Taper
 			-
 			ISO:50/7:24
 			ISO:50/7:24

 			Maximum rotation angle of end mill head
 			.
 			±45°
 			±45°

 			Distance between spindle end face and table top
 			mm
 			30-380
 			45-410

 			Bed Vertical Guide to the spindle center line distance
 			mm
 			350
 			450

 			Spindle speed range (series)
 			rpm
 			30-1500/18
 			30-1500/18

 			Fast moving speed(x/y/z)
 			mm/min
 			6000/6000/3000
 			3000/3000/1500

 			Positioning accuracy
 			mm
 			0.025/300
 			0.05/300

 			Repeat positioning accuracy
 			mm
 			0.015/300
 			0.025/300

 			Main Drive motor power
 			kw
 			7.5
 			11

 			Cooling pump motor power
 			kw
 			0.125
 			0.125

 			External dimensions
 			mm
 			2272x1825x2094
 			2556x2160x2400

 			Weight of machine tool
 			kg
 			3250
 			4320



Details Display:

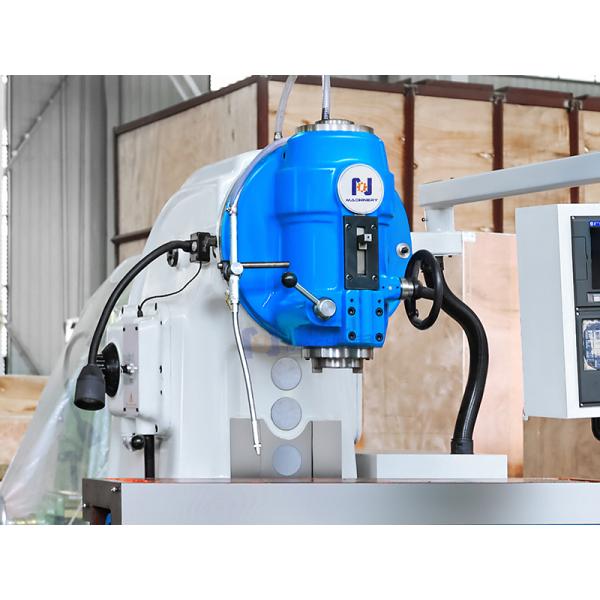

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified

Product Tags:

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified

CE vertical milling machine

CNC vertical milling machine

X axis cnc vertical milling machine

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified Images

PARAMETER ITEM	UNIT	XK5032	XK5040
Size of worktable	mm	1500x320	1700x400
Tabe travel	mm	900x310x350	880x300x365
T-groove	mm	3-14-70	3-18-90
Spindle Taper	-	ISO:50/7:24	ISO:50/7:24
Maximum rotation angle of end mill head	.	±45°	±45°
Distance between spindle end face and table top	mm	30-380	45-410
Bed Vertical Guide to the spindle center line distance	mm	350	450
Spindle speed range (series)	rpm	30-1500/18	30-1500/18
Fast moving speed(x/y/z)	mm/min	6000/6000/3000	3000/3000/1500
Positioning accuracy	mm	0.025/300	0.05/300
Repeat positioning accuracy	mm	0.015/300	0.025/300
Main Drive motor power	kw	7.5	11
Cooling pump motor power	kw	0.125	0.125
External dimensions	mm	2272x1825x2094	2556x2160x2400
Weight of machine tool	kg	3250	4320
